QUADBIN Spatial Index

What is QUADBIN?

QUADBIN is a hierarchical spatial indexing system that assigns a unique 64-bit integer identifier to any tile in a Web Mercator grid. It’s the spatial backbone of RaQuet, enabling efficient tile lookups and spatial queries.

Think of QUADBIN as a way to give every possible map tile — at any zoom level — a unique “address” that can be stored in a single integer column and indexed efficiently by databases.

Why QUADBIN for RaQuet?

RaQuet uses QUADBIN because it provides:

Single-column spatial index — One INT64 column encodes location AND zoom level
Efficient range queries — Spatially adjacent tiles have numerically similar IDs (Morton/Z-order)
Parquet row group pruning — Database engines can skip irrelevant data blocks
Hierarchical structure — Parent-child relationships between zoom levels are implicit

The Web Mercator Tile System

QUADBIN is built on the Web Mercator tile system (also called XYZ, TMS, or Slippy Map tiles). This is the same tiling scheme used by Google Maps, OpenStreetMap, and virtually all web mapping platforms.

At each zoom level z:

The world is divided into 2^z × 2^z tiles
Each tile is identified by (x, y, z) coordinates
Zoom 0 has 1 tile, zoom 1 has 4 tiles, zoom 10 has ~1 million tiles

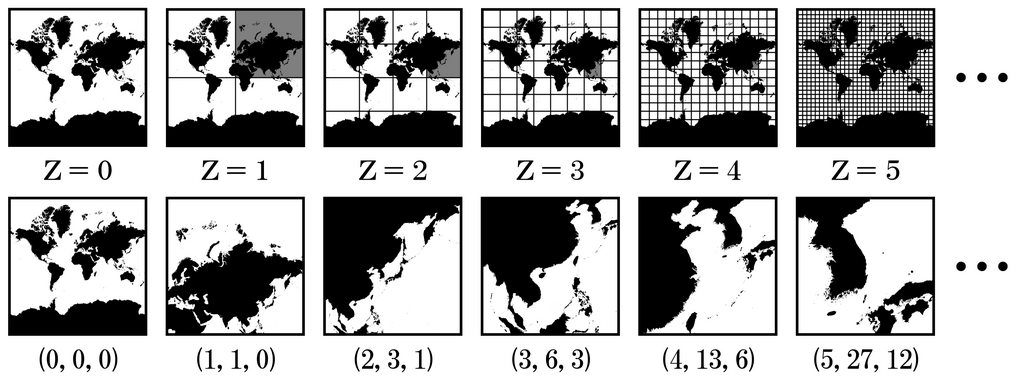

Web Mercator tile pyramid showing zoom levels 0-5 and how tiles subdivide — Source: File:XYZ Tiles.png. License CC0. For an interactive map, see MapTiler's Tiles à la Google Maps.

QUADBIN Encoding

QUADBIN encodes (x, y, z) tile coordinates into a 64-bit integer using a clever bit layout:

Bit layout (64 bits):
┌────────┬──────────┬─────────────────────────────────────────┬─────────────┐
│ Header │Resolution│              Index (Morton code)         │ Unused bits │
│ 4 bits │  5 bits  │            2×z bits                      │ set to 1    │
└────────┴──────────┴─────────────────────────────────────────┴─────────────┘
  0x4     0-26        Interleaved x,y bits                      Padding

Key properties:

Header (bits 60-63): Always 0b0100 (value 4) for cell mode
Resolution (bits 52-59): Zoom level (0-26)
Index (variable): Morton code (Z-order curve) of x,y coordinates
Unused bits: Set to 1 for consistent sorting

Morton Code (Z-order curve)

The x and y coordinates are interleaved bit-by-bit to create a Morton code. This is the key to QUADBIN’s spatial efficiency — nearby tiles have similar Morton codes, which means they’re stored close together in sorted order.

Example: Tile (5, 3) at zoom 3
  x = 5 = 101 (binary)
  y = 3 = 011 (binary)

Interleave: x₂y₂x₁y₁x₀y₀ = 1·0·0·1·1·1 = 100111 (binary) = 39

Algorithm: Tile to QUADBIN

Here’s the complete algorithm to convert tile coordinates to a QUADBIN cell ID:

def tile_to_quadbin(x: int, y: int, z: int) -> int:
    """
    Convert tile coordinates (x, y, z) to QUADBIN cell ID.

    Args:
        x: Tile X coordinate (0 to 2^z - 1)
        y: Tile Y coordinate (0 to 2^z - 1)
        z: Zoom level (0 to 26)

    Returns:
        64-bit QUADBIN cell ID
    """
    # Header for cell mode: 0b0100_1000... = 0x4800...
    header = 0x4800000000000000

    # Resolution stored in bits 52-56 (5 bits)
    resolution = z << 52

    # Interleave x and y bits to create Morton code
    index = 0
    for i in range(z):
        # x bits go to odd positions, y bits to even positions
        index |= ((x >> i) & 1) << (2 * i + 1)
        index |= ((y >> i) & 1) << (2 * i)

    # Shift index to its position (after header and resolution)
    index <<= (52 - 2 * z)

    # Set unused low bits to 1 for consistent sorting
    unused_bits = (1 << (52 - 2 * z)) - 1

    return header | resolution | index | unused_bits

Algorithm: QUADBIN to Tile

The reverse operation extracts tile coordinates from a QUADBIN ID:

def quadbin_to_tile(quadbin: int) -> tuple[int, int, int]:
    """
    Convert QUADBIN cell ID to tile coordinates.

    Args:
        quadbin: 64-bit QUADBIN cell ID

    Returns:
        Tuple of (x, y, z) tile coordinates
    """
    # Extract zoom level from bits 52-56
    z = (quadbin >> 52) & 0x1F

    # Extract Morton index
    index = (quadbin >> (52 - 2 * z)) & ((1 << (2 * z)) - 1)

    # De-interleave x and y from Morton code
    x, y = 0, 0
    for i in range(z):
        x |= ((index >> (2 * i + 1)) & 1) << i
        y |= ((index >> (2 * i)) & 1) << i

    return x, y, z

Example Calculations

Example 1: Tile (0, 0, 0) — The entire world

>>> tile_to_quadbin(0, 0, 0)
5192650370358181887

# In hex: 0x4800FFFFFFFFFFFF
# Header:     0x4 (cell mode)
# Resolution: 0 (zoom 0)
# Index:      0 (no bits)
# Unused:     all 1s

Example 2: Tile (1, 2, 3) — A tile at zoom 3

>>> tile_to_quadbin(1, 2, 3)
5196930832277643263

# In hex: 0x48039FFFFFFFFFFF
# Header:     0x4
# Resolution: 3
# Index:      001110 (Morton code for x=1, y=2)
# Unused:     remaining bits set to 1

Example 3: Reverse lookup

>>> quadbin_to_tile(5196930832277643263)
(1, 2, 3)

Why Morton Order Matters

The Morton code (Z-order curve) creates a space-filling curve that preserves spatial locality:

Morton order at zoom 2:
┌────┬────┬────┬────┐
│ 0  │ 1  │ 4  │ 5  │
├────┼────┼────┼────┤
│ 2  │ 3  │ 6  │ 7  │
├────┼────┼────┼────┤
│ 8  │ 9  │ 12 │ 13 │
├────┼────┼────┼────┤
│ 10 │ 11 │ 14 │ 15 │
└────┴────┴────┴────┘

Notice how:

Adjacent tiles have similar indices
Each quadrant contains consecutive ranges (0-3, 4-7, 8-11, 12-15)
Child tiles at zoom N+1 are grouped together

This property enables:

Range queries: “All tiles in Europe” becomes a small set of index ranges
Row group pruning: Parquet can skip entire data blocks based on min/max statistics
Efficient sorting: Sorted data clusters spatially related tiles

QUADBIN in RaQuet

In a RaQuet file, each row’s block column contains a QUADBIN cell ID:

-- Get tile coordinates from a RaQuet file (raw Parquet, manual filtering)
SELECT
    block,
    (block >> 52) & 31 AS zoom,
    -- x and y require de-interleaving (use quadbin library)
FROM read_parquet('raster.parquet')
WHERE block != 0
LIMIT 5;

With the DuckDB Raquet Extension, you get helper functions and automatic metadata handling:

INSTALL raquet FROM community;
LOAD raquet;

-- Cleaner API (metadata row excluded automatically)
SELECT
    block,
    quadbin_resolution(block) AS zoom,
    quadbin_to_tile(block) AS tile_xyz
FROM read_raquet('raster.parquet')
LIMIT 5;

For spatial queries, the QUADBIN library functions handle the encoding/decoding:

-- Using CARTO Analytics Toolbox
SELECT *
FROM raquet_table
WHERE block = QUADBIN_FROMLONGLAT(-3.7, 40.4, 10);

Reference Implementations

Production-ready QUADBIN libraries:

Language	Library	Functions
Python	quadbin-py	`tile_to_cell()`, `cell_to_tile()`
JavaScript	@carto/quadbin	`tileToCell()`, `cellToTile()`
SQL	CARTO Analytics Toolbox	`QUADBIN_FROMTILE()`, `QUADBIN_TOTILE()`

Python example:

import quadbin

# Tile to QUADBIN
cell = quadbin.tile_to_cell((x, y, z))

# QUADBIN to tile
x, y, z = quadbin.cell_to_tile(cell)

# Geographic point to QUADBIN at zoom 10
cell = quadbin.point_to_cell(longitude, latitude, 10)
